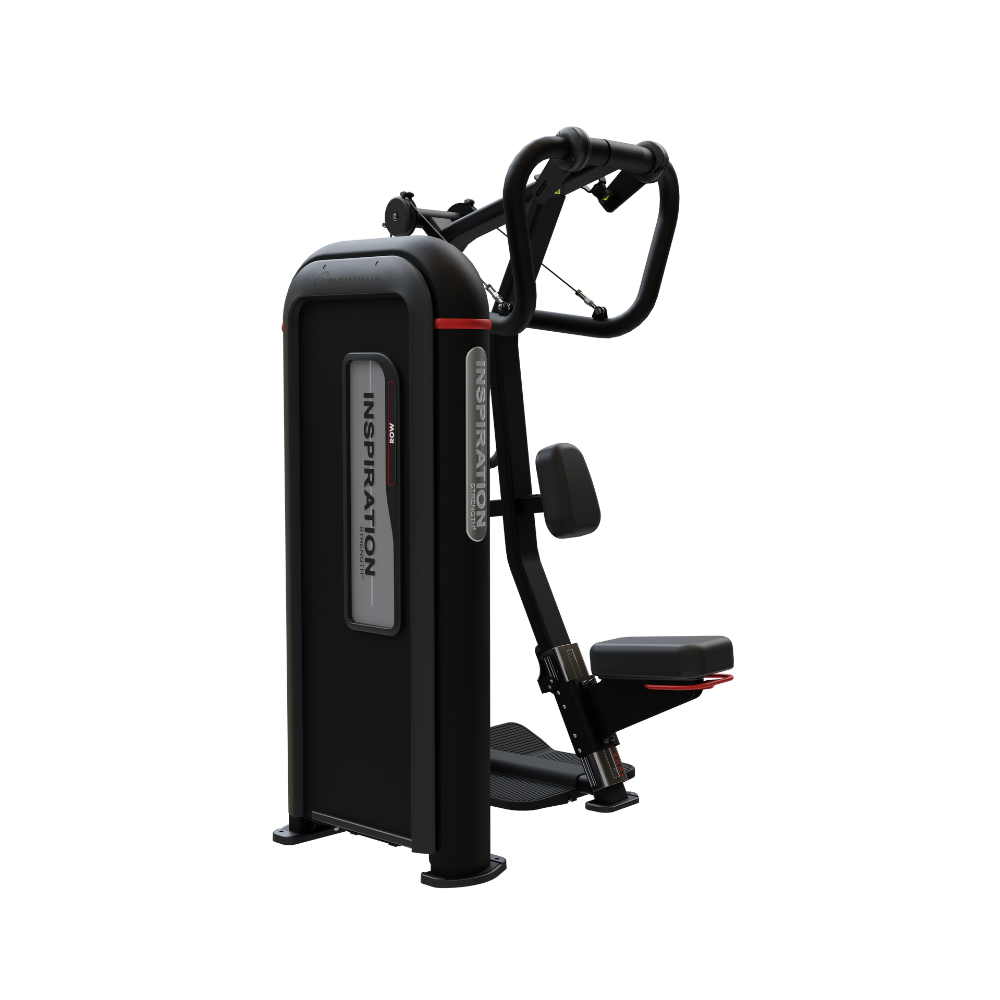

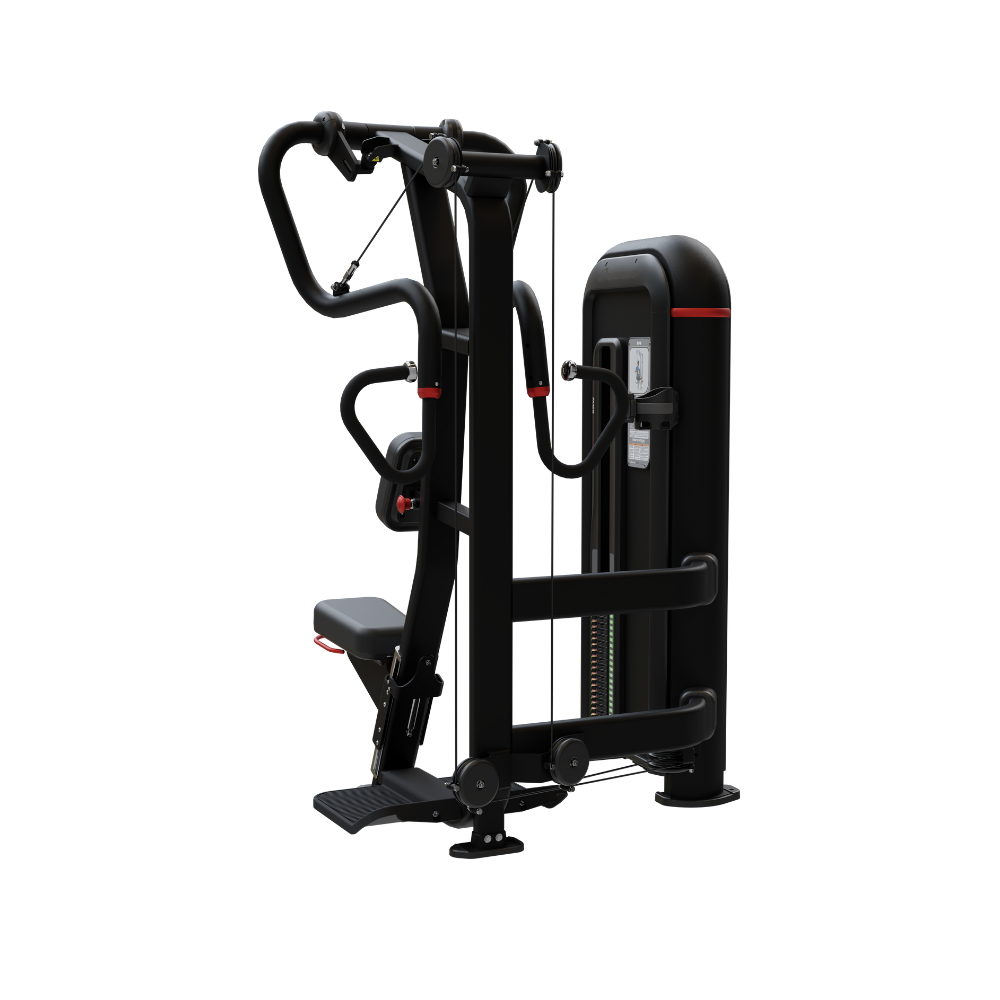

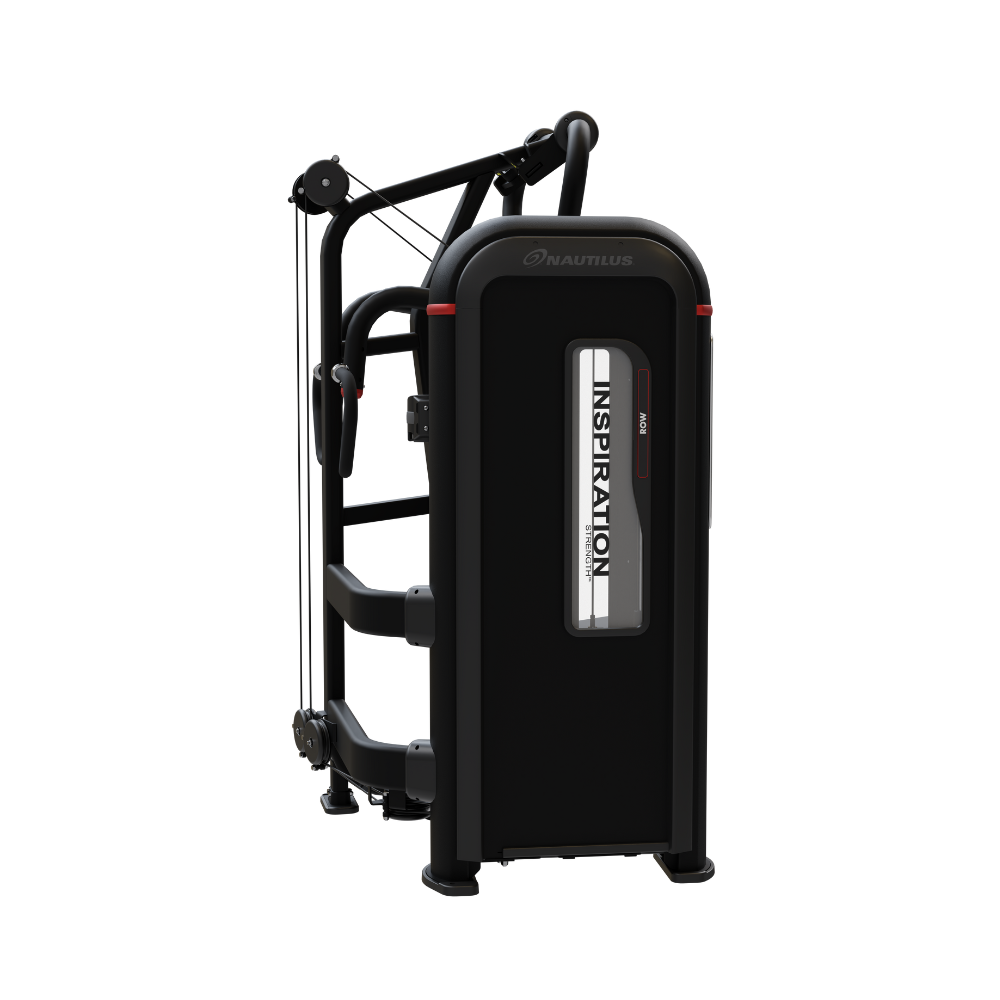

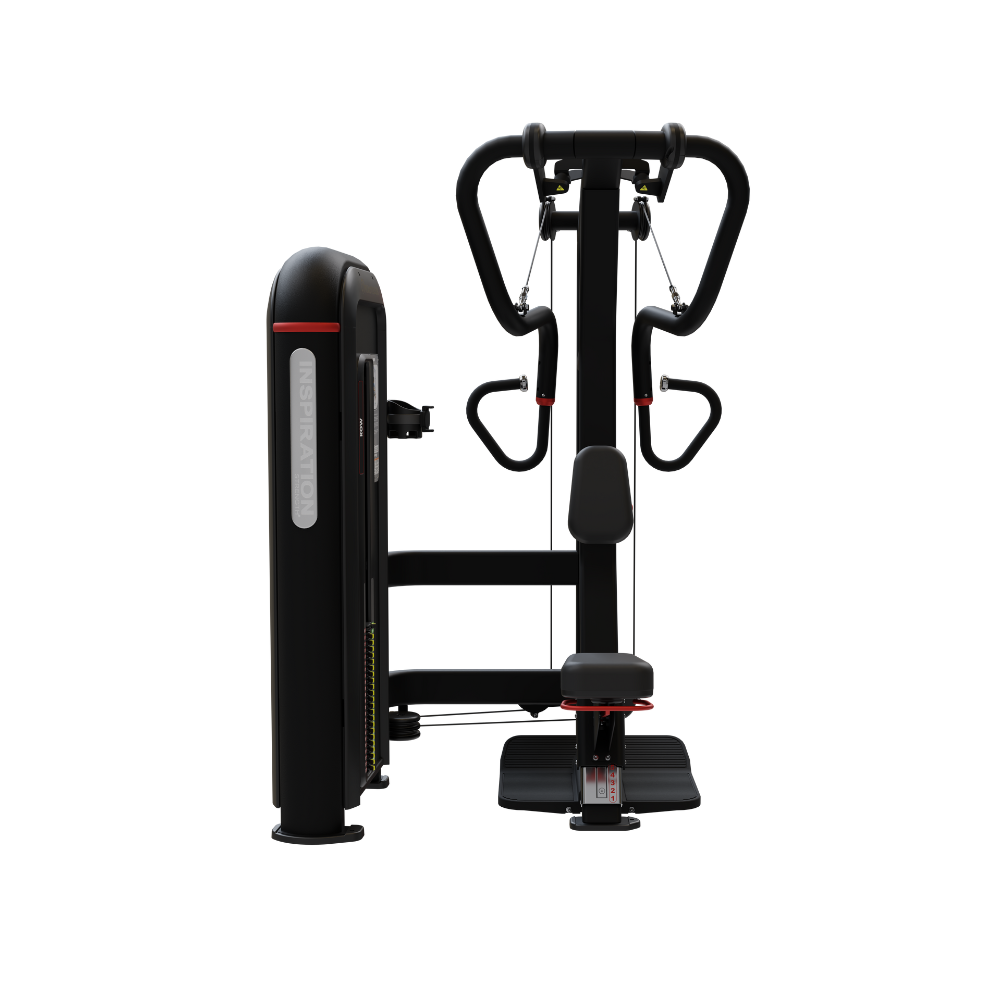

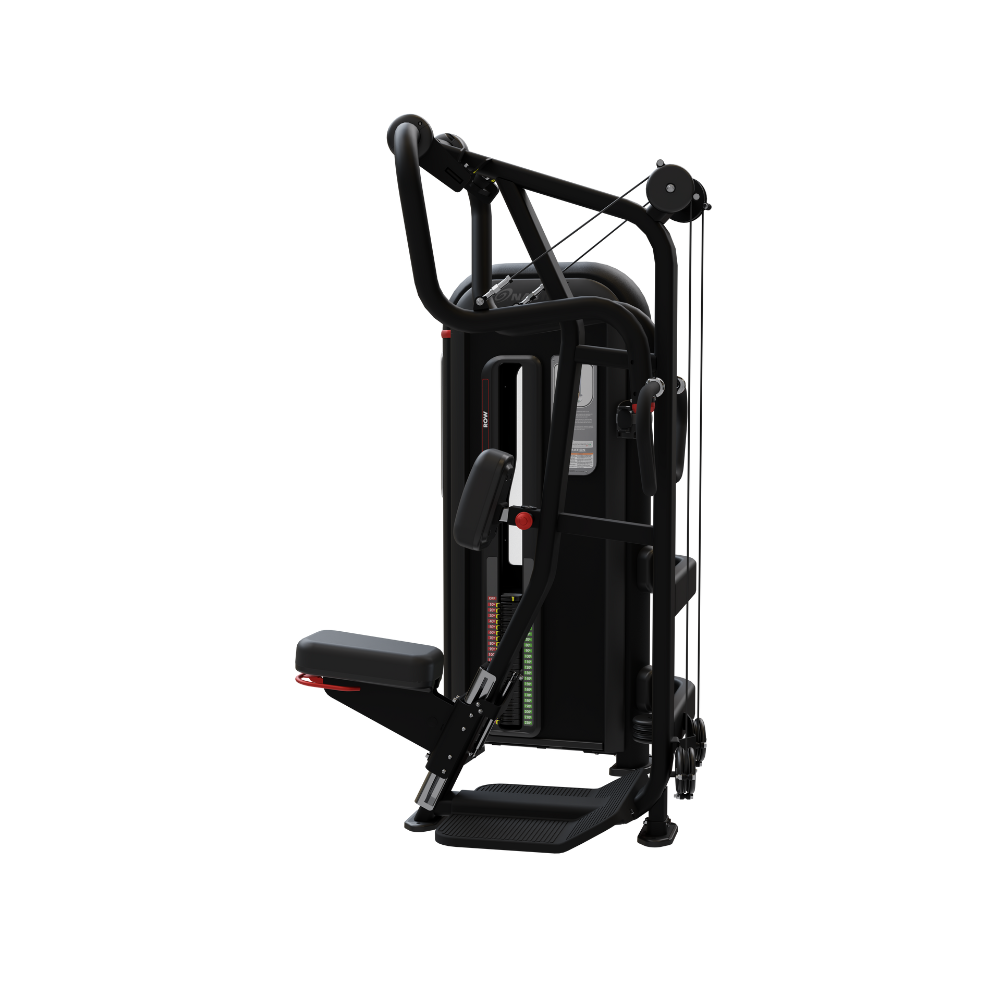

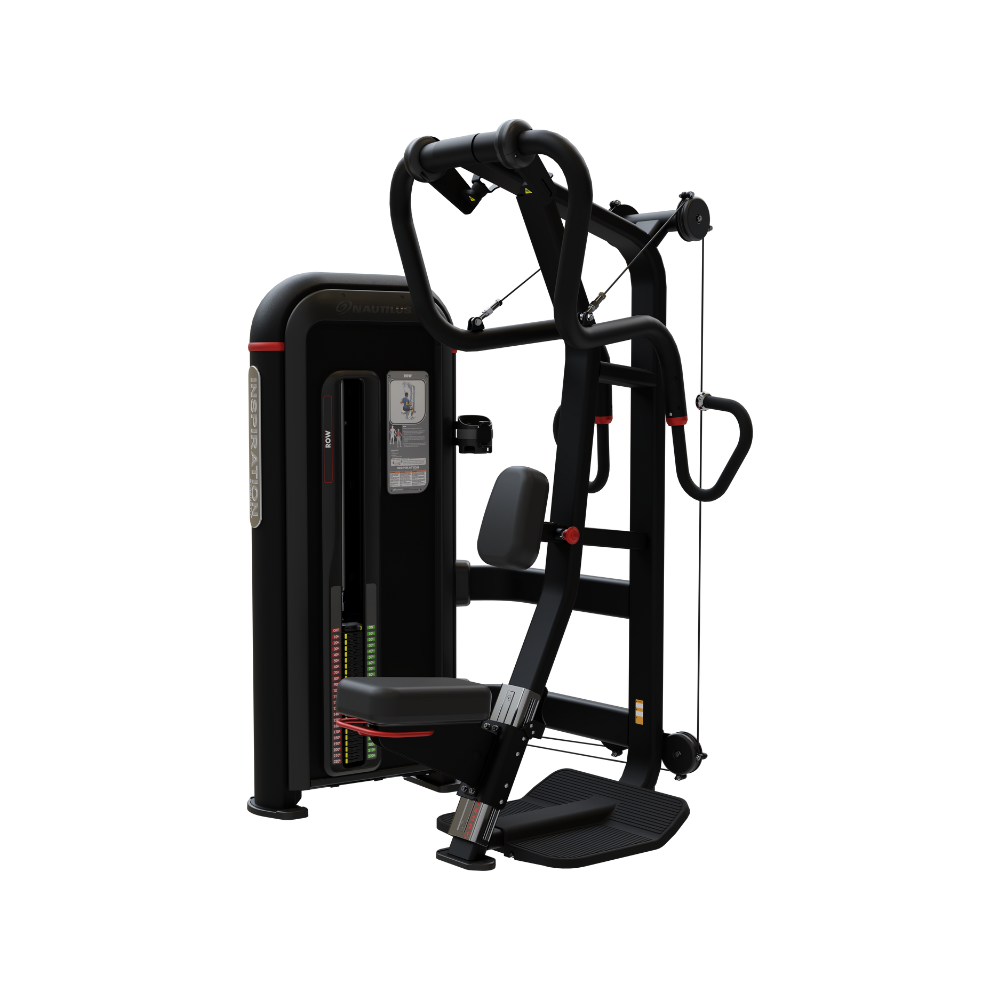

Nautilus Inspiration Selectorised Vertical Row
Send a copy to email:
By entering your email, you agree that it will be seen by the store owner and may contact you.
Or download now:
Open here
The Nautilus Inspiration Vertical Row with contoured support and smooth biomechanics delivers the satisfying feel of premium strength as it targets the mid and upper back. Multiple hand grip positions and the ability to squeeze in either a unilateral or bilateral motion allow the user to maximize their performance. The use of a diverging axis in the Vertical Row keys in on the natural biomechanics needed to ensure each user is hitting their full range of motion. The Nautilus Vertical Row is an essential piece in the Inspiration Line and rounds out a well-defined strength circuit.
LOCK N LOAD WEIGHT SELECTION
Selecting a weight with the intuitive Lock N Load design is as easy as flicking a switch. Universally color-coded switches engage and disengage the weight via an internal pin, providing a safer, more durable and maintenance-free operation. Lock N Load prevents unnecessary maintenance headaches since there are no pins to lose or replace.
SMART TOWER DESIGN
The beautifully designed Nautilus Inspiration line, with their uniform 64" (163 cm) towers, delivers superior lines of site across your venue and creates a visually powerful impression during facility tours. The tower housing is designed to accommodate custom graphics and wraps to personalize the equipment in your facility.
| W | 50 in (127 cm) |
| L | 45 in (114 cm) |
| H | 77 in (196 cm) |
| Stack Weight | 240 lb (108 kg) |
| Overall Weight | 690 lb (313 kg) |
| Shipping Weight | 772 lb (350 kg) |
| Adjustments & Movements | |
| User Defined Range of Motion | Fixed path of motion with standard 3 hand grip position options. |
| Assisted Adjustments | Wrap-around gas assist seat adjust with axis of rotation highlighted for precise user positioning. |
| Color Coded Pivot Points and Adjustments | Yes on all units |
| Unilateral or Bilateral Movement | Unilateral and Bilateral dependent can be performed (one or two arm movements) |
| Converging or Diverging Movements | N/A |
| Pulley Ratio | 1:1 pulley ratio |
| Frame Specifications & Cable Information | |
| Standard Frame Color Options | 60 Black |
| Standard Upholstery Color Options | Black |
| Frame Finish | Electrostatic Powder coating |
| Customizable Paint Options Available | Yes with additional fees and extended lead times |
| Customizable Upholstery Options Available | Yes with additional fees and extended lead times |
| Customizable Branding Options Available | Yes with additional fees and extended lead times |
| Cable vs. Belt Driven Transmission | Cable drive |
| Bolt Down Locations Defined | Yes |
| Integrated Leveling System | Yes |
| Hardware Type | Hex / Button Head |
| Tubing Style & Thickness | Modern blend of square and round tubing. Most are 3 or 2.5mm / 11 ga |
| User Specific Information | |
| Static Placards | Animated lenticulars, showing start and stop positions |
| Multi-Language Placards Options Available | Yes |
| Animated Lenticular | Animated lenticulars, showing start and stop positions |
| Safety Catch & Stops | Yes, end range of motion safety stop |
| Water Bottle Holder | Yes, integrated to weight stack tower, eye level |
| Phone Holder | Yes, adjustable in size and position |
| Grip Specifications | Rubber, large grips for pushing, smaller grips for pulling. |
| Foot Platform | Extra-large non-slip leverage bar for assisted start and stop positions. |
| Contoured Pads | Yes, contoured pads |
| Belt Stabilization System | Yes, heavy-duty seat belt restraint system to accommodate all users |
| Weight Stack Specifications | |
| Total Stack Weight | 200 lb (91 kg) |
| Incremental Weight System | 10 lb increment, 5 lb add on |
| Weight Stack Tower Height | Standard 64in (163 cm) height on all products |
| Plate Loaded | N/A |
| Weight Storage Solution | N/A |
| LNL Technology | Yes |
| Add-On Resistance Available | Yes, 5 lb incremental add on plate |
| Weight Stack Shroud Specifications | Uniform size, standard steel / customized aluminum materials |
- Structural frame not including coatings - limited 10 year warranty.
- Major mechanical components (guide rods, plates, bearings, etc) - 5 years parts.
- Minor mechanical components (plate switches, cables, grips, etc) - 1 year.
- Upholstery - 6 months.
- 1 Year Labour
