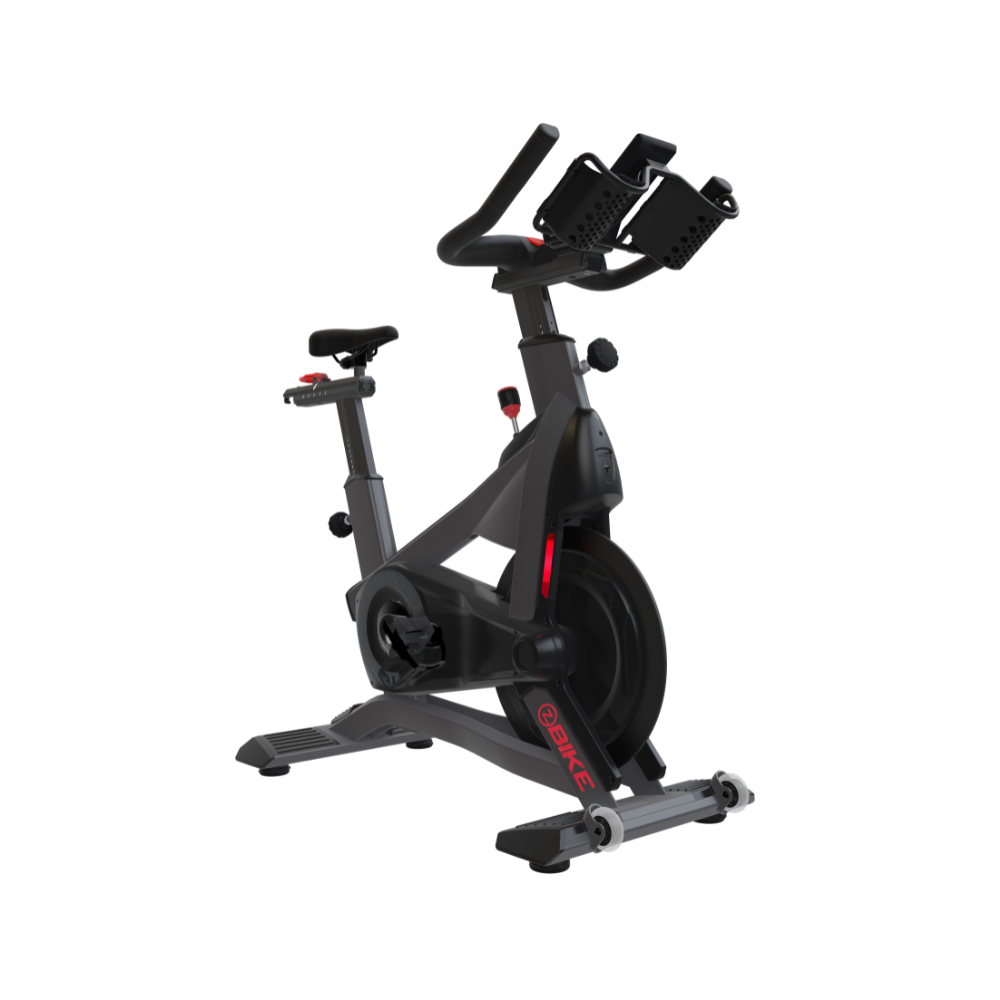

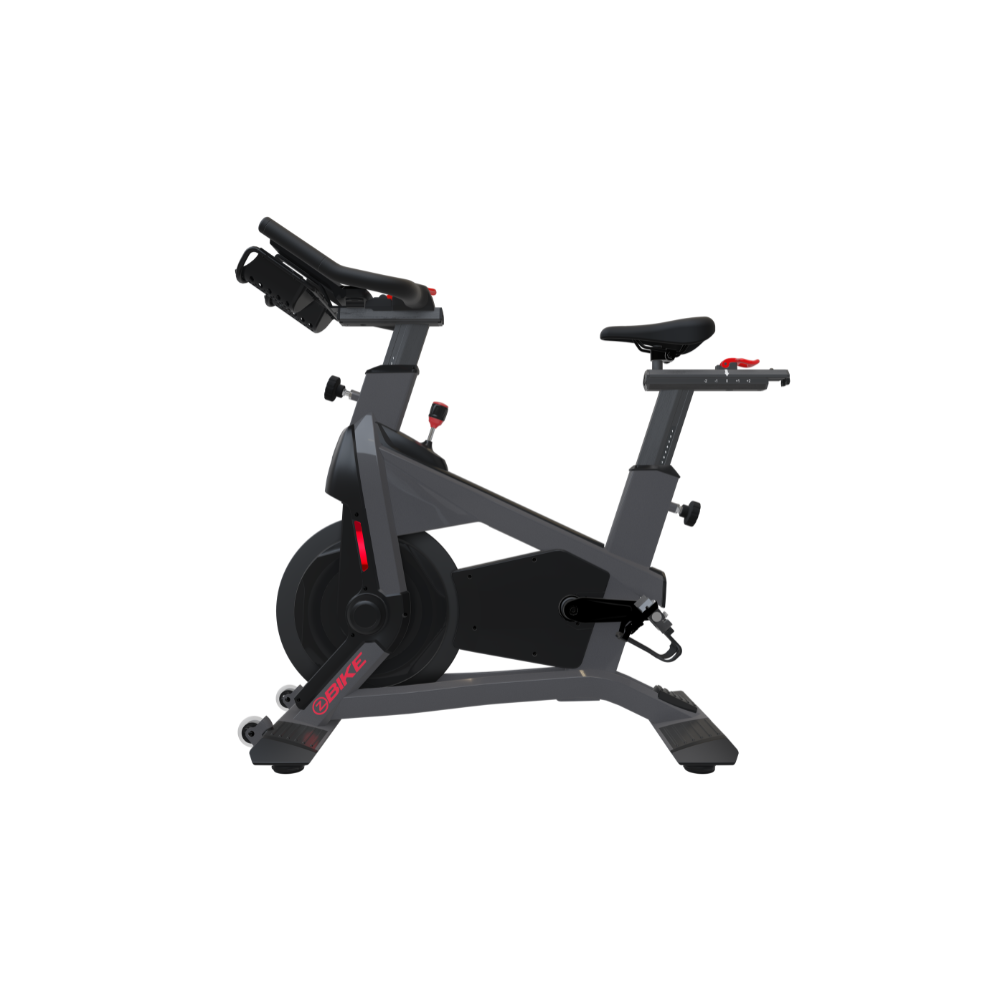

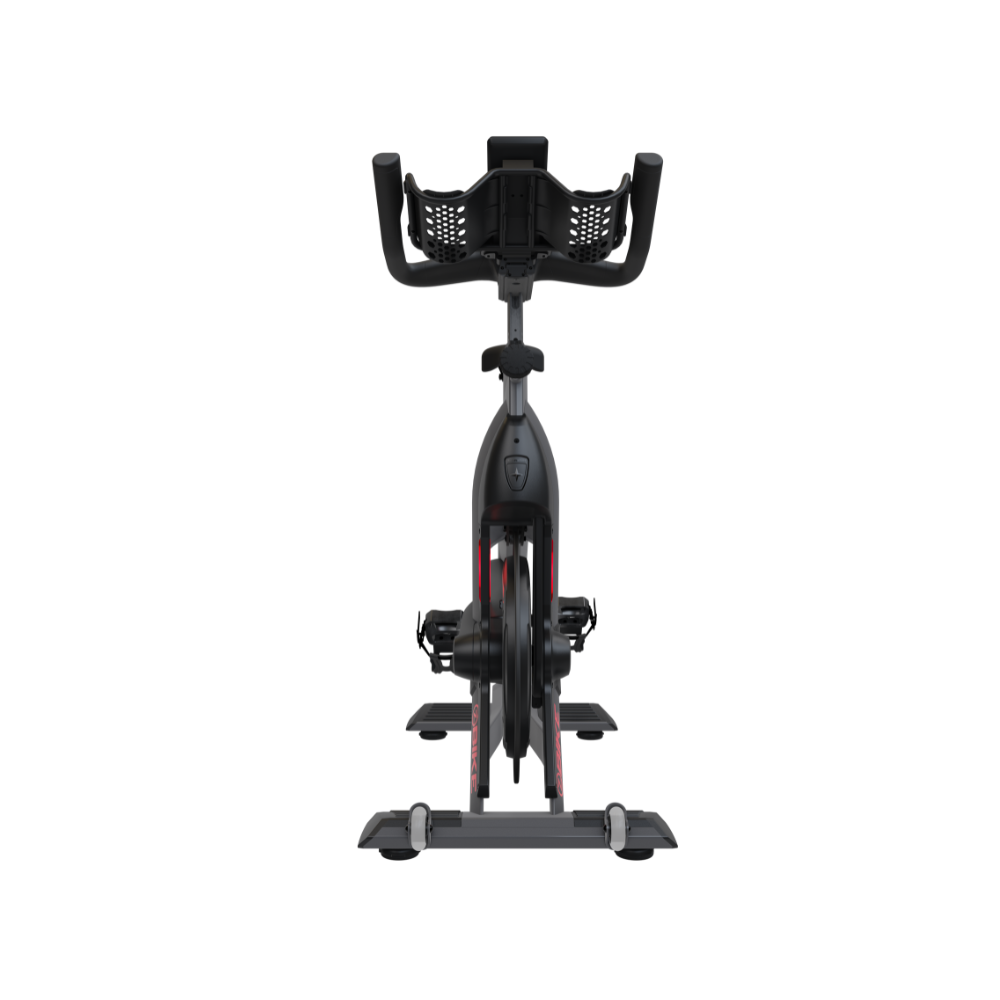

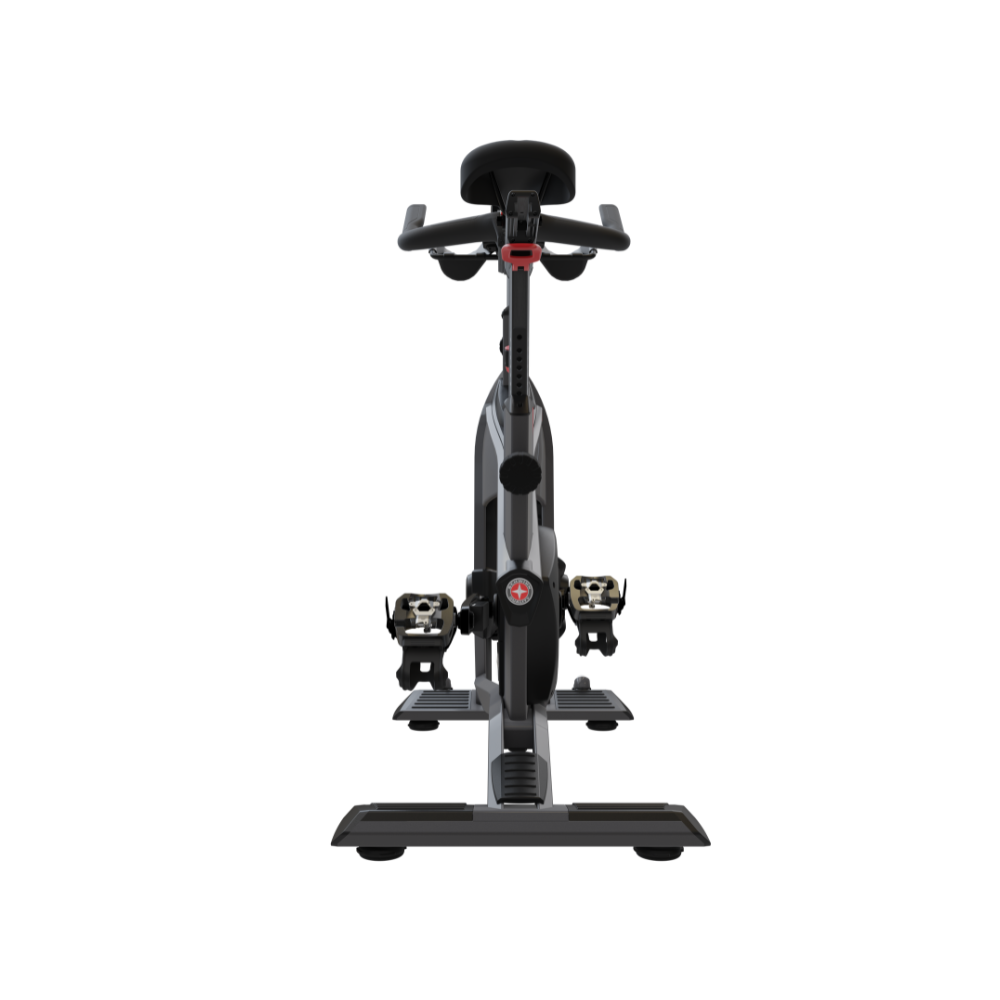

Schwinn Z Bike Indoor Cycle – Connected Studio Cycling with Zone Training
The Schwinn Z Bike Indoor Cycle is a next-generation group cycling bike designed for studios that want to deliver engaging, inclusive, and results-driven classes. Powered by personalized training zones and instructor-led accountability, the Z Bike unites members through color-based intensity tracking, ensuring every ride is motivating and never the same twice.

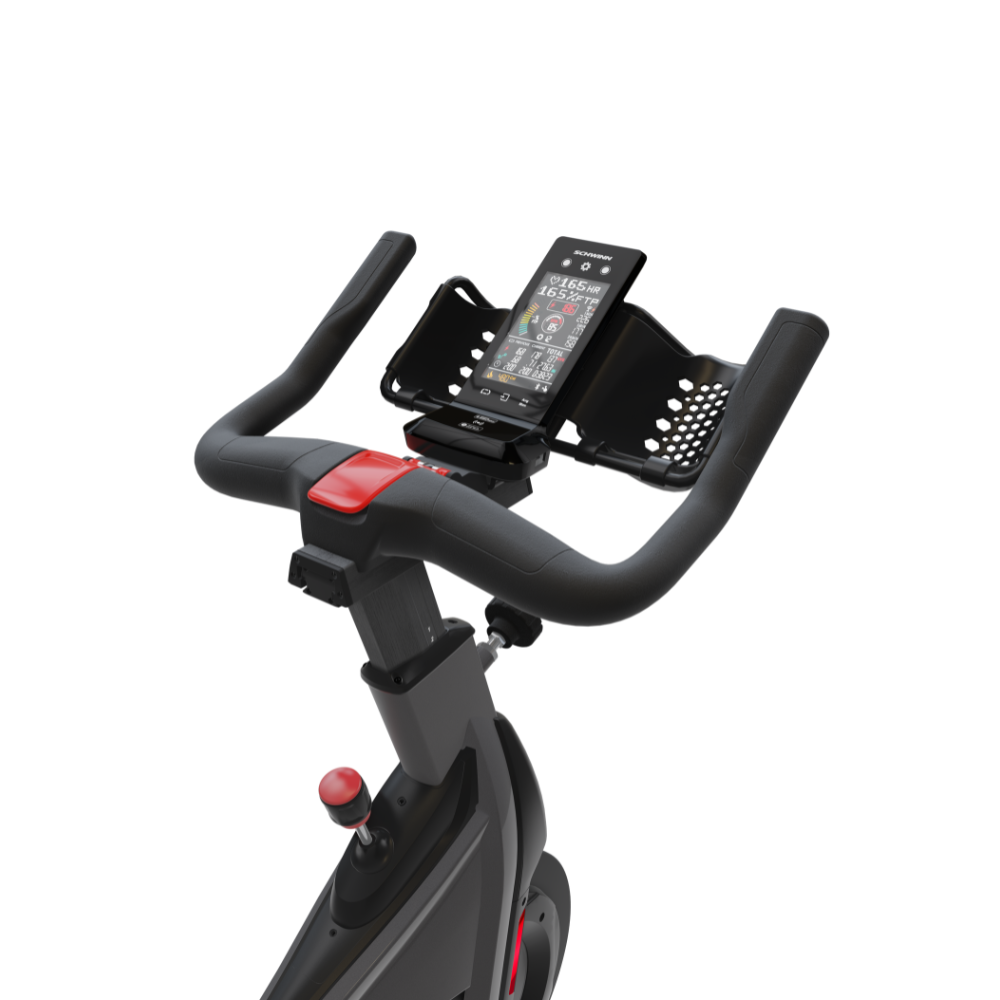

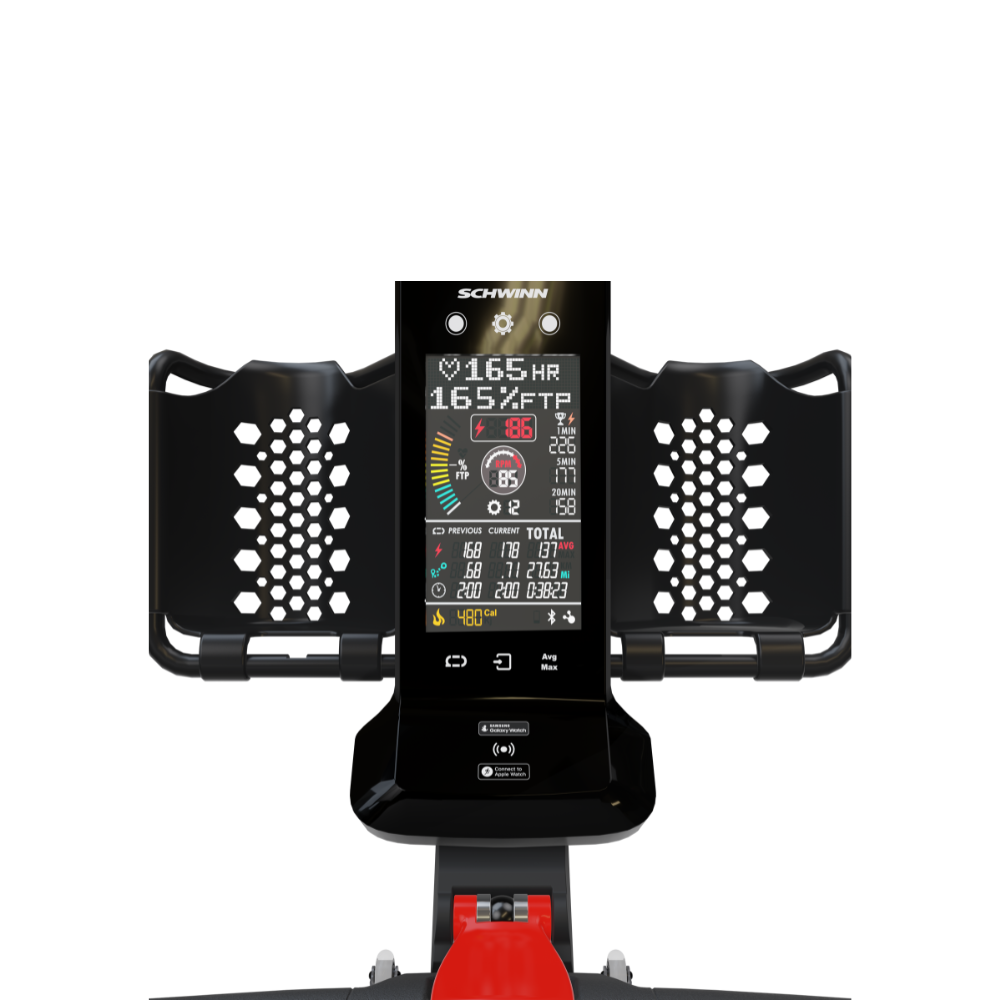

At the heart of the Z Bike is the Zone Console, paired with 4iiii’s industry-leading 3D strain gauge powermeter. This combination delivers the most accurate and authentic power feedback available, giving riders a reliable performance metric that adapts to FTP, heart rate, or cadence training. Instructors can build classes that challenge all fitness levels, while riders experience a sense of unity and accomplishment as zone-colored LED lights next to the flywheel display their intensity.
The smooth Poly V drive train (Zs model) or authentic toothed carbon belt (Za model) provide durability and a realistic cycling feel, while the 6-magnet non-contact resistance system ensures consistent, quiet, and maintenance-free performance. Built with a powder-coated aluminum frame, Morse Taper pedals, and a wide user height range (150–203 cm), the Z Bike is designed for long-lasting reliability in high-traffic studio environments.
Beyond performance, Schwinn leads with a commitment to sustainability. The Z Bike reduces battery waste by generating console power directly from pedaling and ships in 100% recycled corrugate packaging, eliminating harmful EPS foam. For studios, this means lower environmental impact without compromising technology or performance.
Connectivity is seamless thanks to OpenHub console technology, offering Bluetooth, NFC, and ANT+ integration. This ensures members and facility owners can connect with their preferred fitness apps and platforms, making the Z Bike a flexible choice for any studio.
Compact, accurate, and built for community-driven training, the Schwinn Z Bike Indoor Cycle is the ultimate solution for group cycling classes that inspire riders, empower instructors, and bring members together.
| PRODUCT WEIGHT: | 130 lbs (59 kg) |
| SHIPPING WEIGHT: | 152 lbs (69 kg) |
| PRODUCT FOOTPRINT (LXW): | 42.5 in x 20.6 in (1076.5 mm x 525 mm) |
| MAX PRODUCT LENGTH: | 56 in (1420 mm) |
| SHIPPING DIMENSIONS (LXWXH): | 44.5 in x 10.6 in x 38 in (1130 mm x 270 mm x 960 mm) |
| FRAME MATERIAL: | Aluminum |
| FRAME FINISH: | Powder-coated |
| FRAME COLOR: | Quantum Silver |
| DRIVE SYSTEM/DRIVE TRAIN: | Smooth Poly V Zs 9-7510-QINTP0 |
| Authentic, toothed carbon belt: | Za 9-7520-QINTP0 |
| RESISTANCE SYSTEM: | 6 Magnet Non-Contact Magnetic Resistance |
| Q-FACTOR: | 168 mm |
| HANDLE BAR: | Universal |
| SADDLE: | AC Saddle |
| FORE/AFT ADJUSTMENT SYSTEM: | Lever micro-adjustment |
| HEIGHT ADJUSTMENT SYSTEM: | Pop-Pin |
| FLYWHEEL: | Aluminum, thin profile |
| PEDALS: | Morse Taper Double Link - SPD and athletic shoe cage |
| USER HEIGHT RANGE: | 4'11 to 6'8 (150 cm to 203 cm) |
| MAX USER WEIGHT: | 300 lb (136 kg) |
