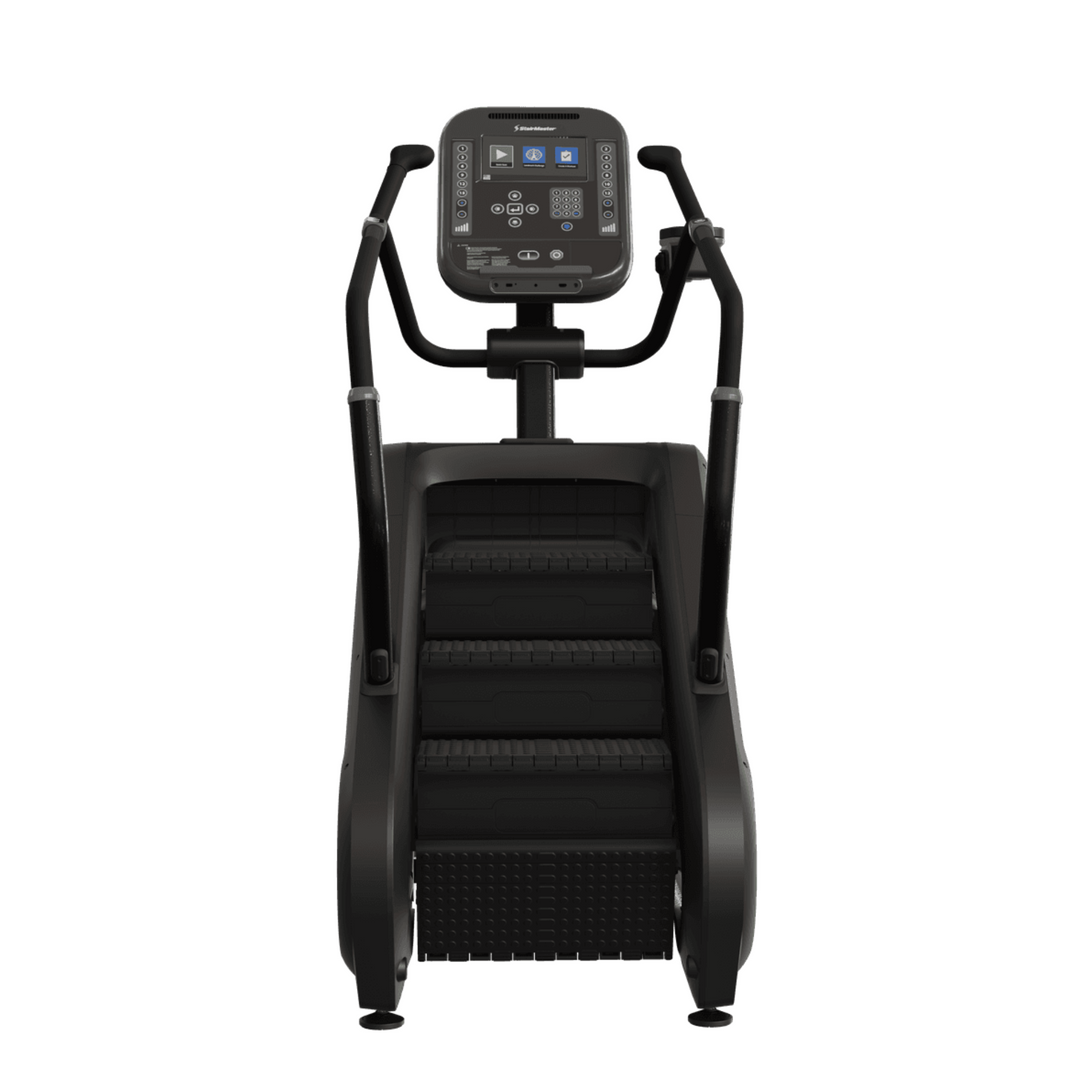

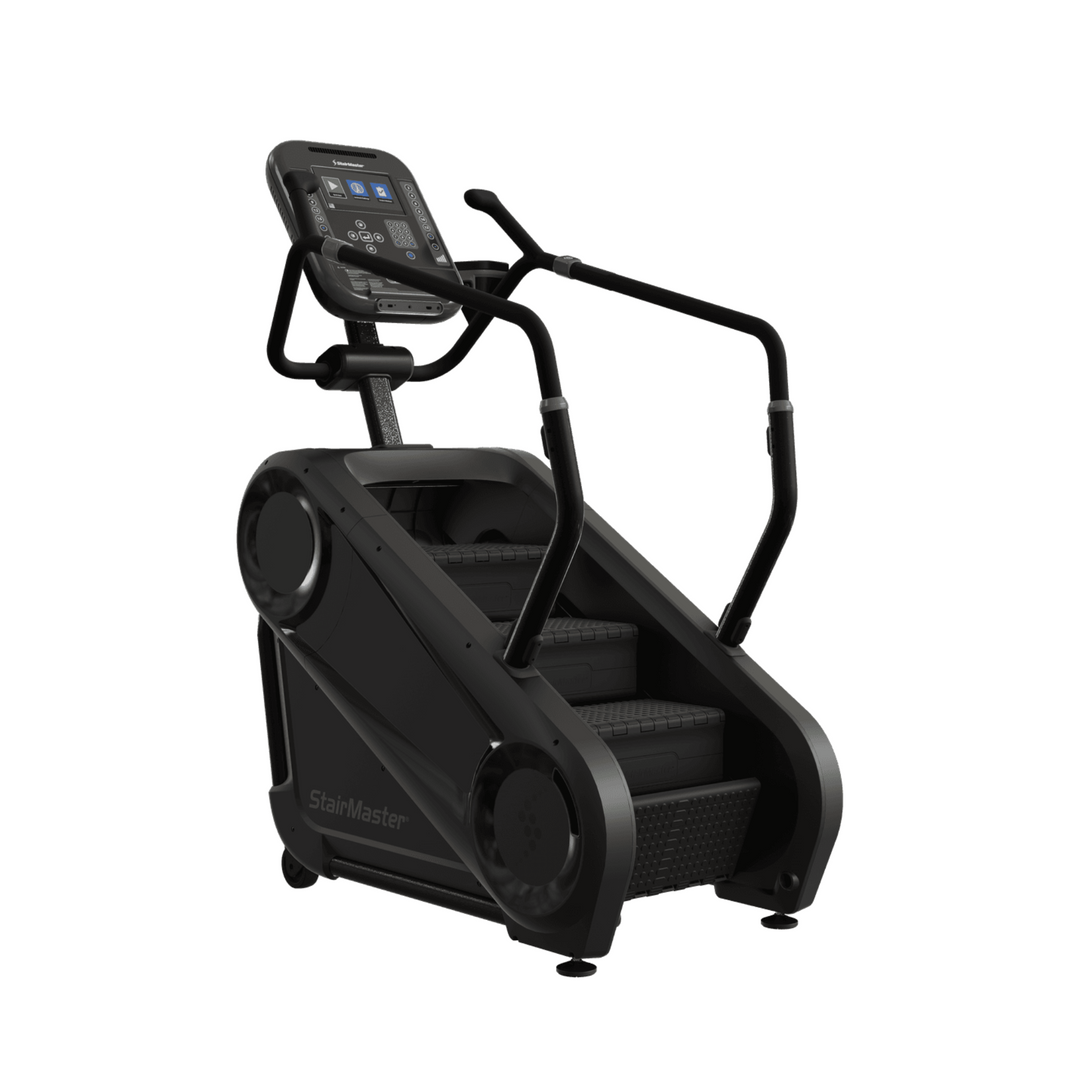

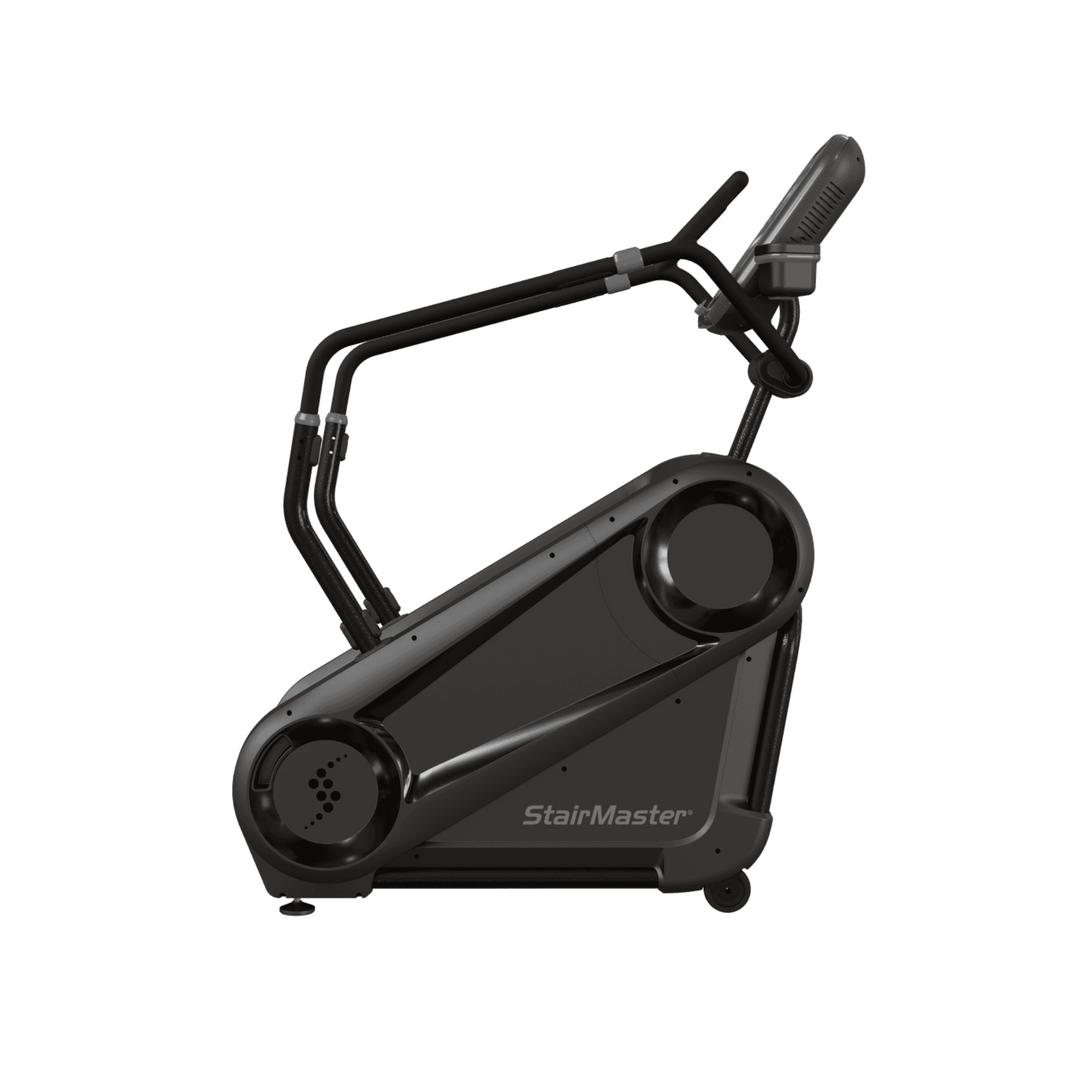

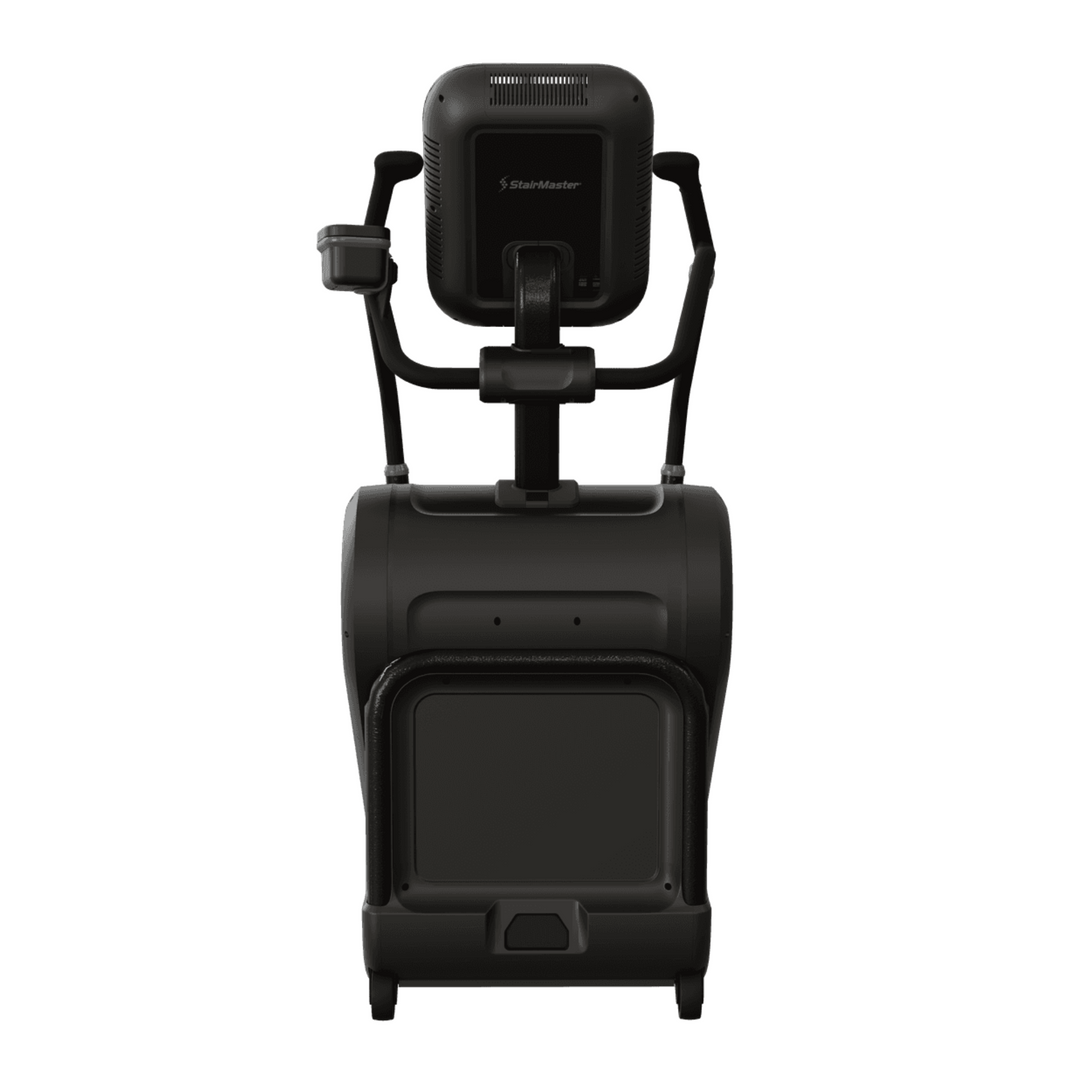

StairMaster 4G Series Stairmill
- Compact Footprint: Space-saving design with a 54" x 29" footprint and just 8' ceiling height clearance—ideal for smaller fitness spaces.
- Low Step-Up Height: Easy access with a 14" step-up to the first flat step and comfortable 6" step height for users of all fitness levels.
- Integrated Handrail Controls: Built-in speed and stop buttons along with heart rate sensors for a seamless and safe workout experience.
- Performance Step Rate: 20 resistance levels ranging from 24–162 steps per minute for varied, heart-pumping cardio sessions.
Compact Power, Big Performance
The StairMaster 4G StairMill answers the demand for a powerful cardio solution that fits into smaller training environments without compromising performance. Designed to deliver the same intense, calorie-burning, low-impact stair-climbing workout the StairMaster name is known for, the 4G is ideal for home, hospitality, boutique studios, and multi-housing fitness spaces. With a compact footprint of just 54” x 29” and a ceiling clearance requirement of only 8 feet, it brings commercial-grade training into places the 10G and 8Gx simply can’t go.
Smart Design, Enhanced User Experience
The 4G’s newly redesigned handrail system provides multiple climbing positions and integrates speed controls, a stop button, and contact heart rate sensors for a safer, more intuitive workout. A 14” step-up height and ergonomically sized steps make it accessible to a wide range of users. Its 20 resistance levels and step rate ranging from 24 to 162 steps per minute make it equally suitable for beginners and hardcore stair climbers alike.
Console Flexibility and Digital Integration

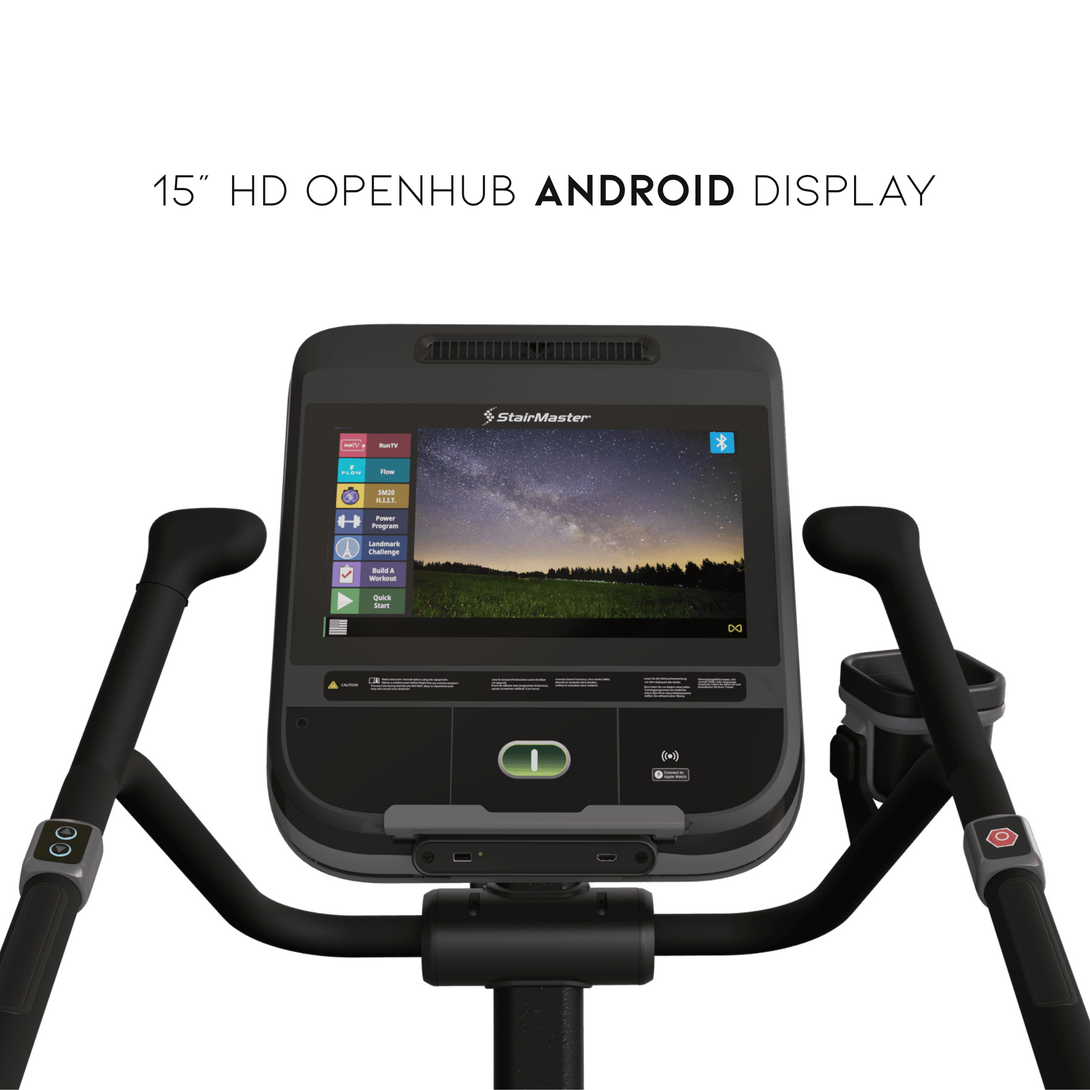

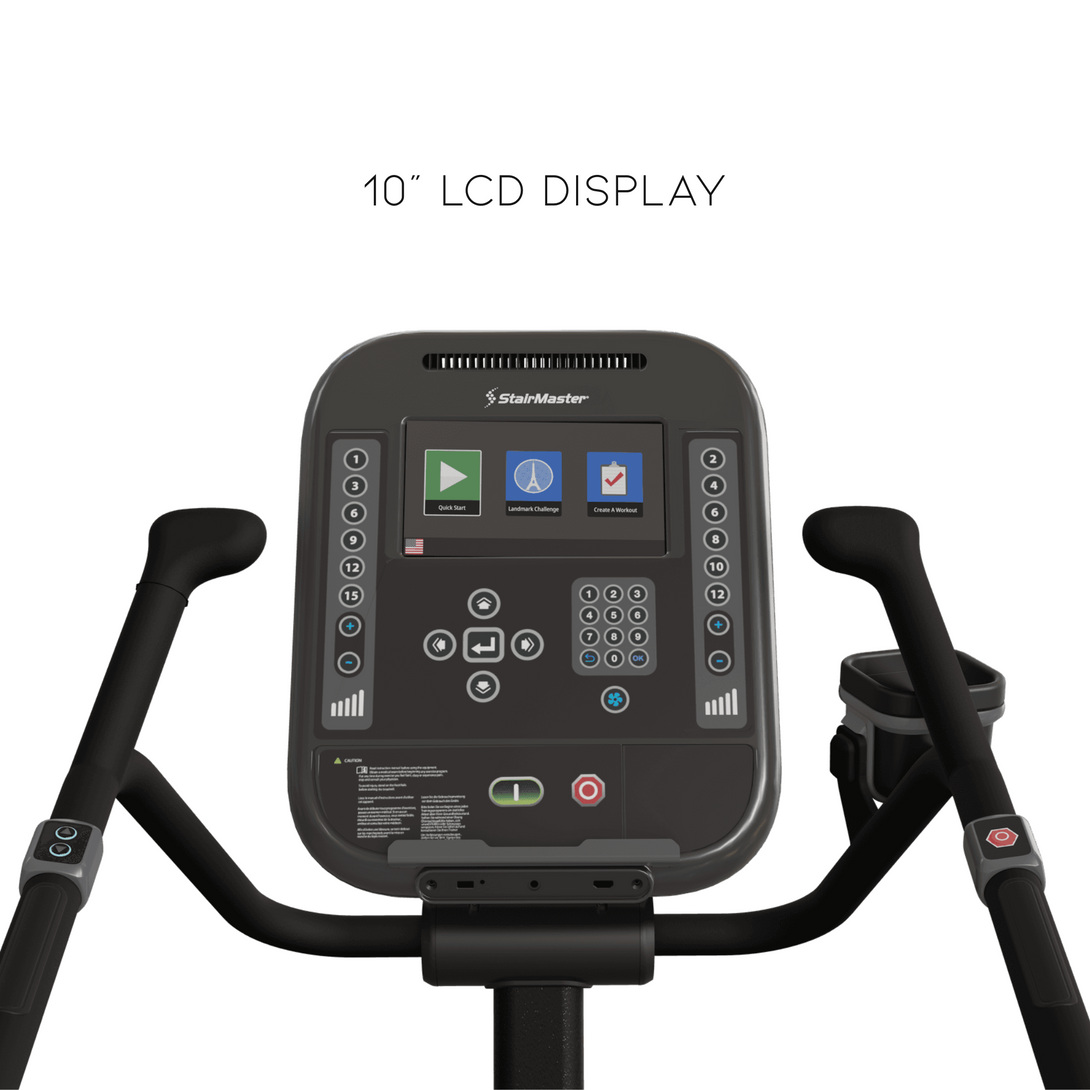

Choose from a range of OpenHub™ consoles, including a 10” LCD, 10” Touchscreen, or 15” Embedded Display. The 4G offers Bluetooth connectivity, telemetry heart rate tracking, USB charging, and HDMI streaming with the 15” model. Personal cooling fans and a built-in bottle and accessory holder add comfort and convenience to every session, while the console options support popular entertainment and fitness apps to keep users engaged.
Built for Maintenance and Longevity
Constructed with a durable powder-coated steel frame, the 4G is engineered for longevity in demanding environments. Maintenance is made easy with a quick-access service panel that removes with just four fasteners, streamlining servicing and reducing downtime. With user weight support up to 350 lbs and a reliable, responsive drive system, the StairMaster 4G is the perfect mix of performance, accessibility, and smart design.
| Specification | Value |
|---|---|
| LENGTH | 54in (137cm) |
| WIDTH | 29in (74cm) |
| HEIGHT | 64in (163cm) |
| STEP SURFACE | 10in x 18in (25cm x 46cm) |
| STEP HEIGHT | 7in (18cm) |
| STEP RATE | 20 Levels ranging from 24-162 steps per minute |
| STEP-UP HEIGHT | 14in (36cm) to first flat step |
| RECOMMENDED CEILING HEIGHT | 8ft (244cm) |
| HEART RATE MEASUREMENT SYSTEM | Telemetry and contact HR (Bluetooth with embedded display) |
| CONTROLS | Handrail design features integrated speed controls, stop button, and contact heart rate grips |
| DISPLAY | Choose from 10” non-touch, 10” touch, or 15” OpenHub display options |
| ACCESSORIES | Convenient bottle and/or accessory holder, console pre-wired for PVS entertainment |
| MAX USER WEIGHT | 350lb (159kg) |
| DRIVE SYSTEM | Generator |
| ELECTRICAL REQUIREMENTS | 12 V/5 Amp power supply |
| ADDITIONAL FEATURES | Landmark Challenge |
| MATERIAL | FRAME: Powder Coated Steel Frame |
| CUSTOMIZABLE | Paint color options approval required |
| STANDARD COLOR OPTIONS | Matte Black (-60) |
| PRODUCT WEIGHT | 348 lbs (158kg) |
| SHIPPING DIMENSIONS | 49in x 30in x 43in (125cm x 76cm x 109cm) |
| SHIPPING WEIGHT | 434 lbs (197kg) |
Consumer Warranty:
Limited 10 year warranty on structural frame not including coatings, motor & MCB 5 years parts and labor, all other components warranted for 10 years parts and 3 years labor.
Light Commercial*
Limited 10 year warranty on structural frame not including coatings, 5 years parts, 1 year wear items*
