Stairmaster 8GX Series Gauntlet Stairmill

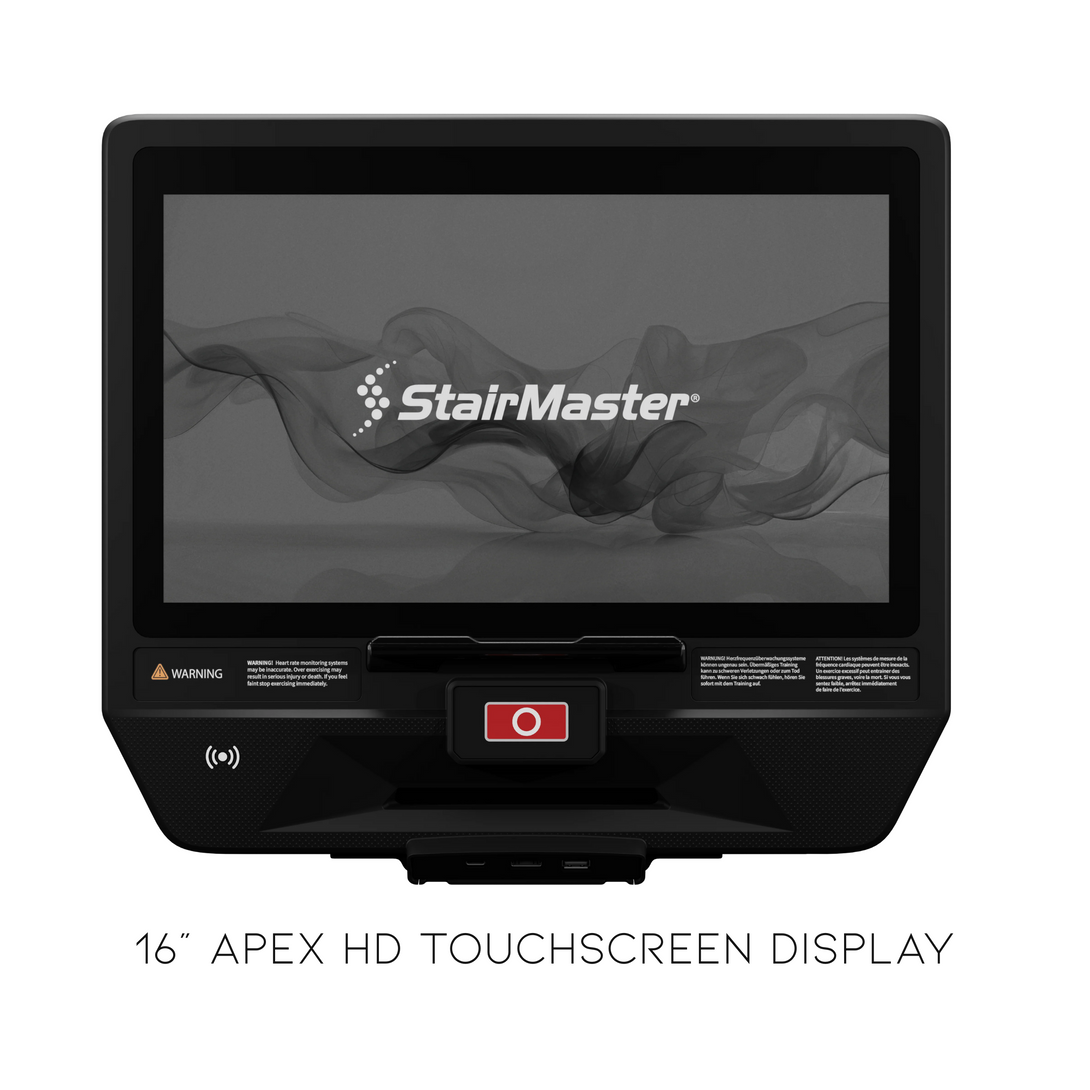

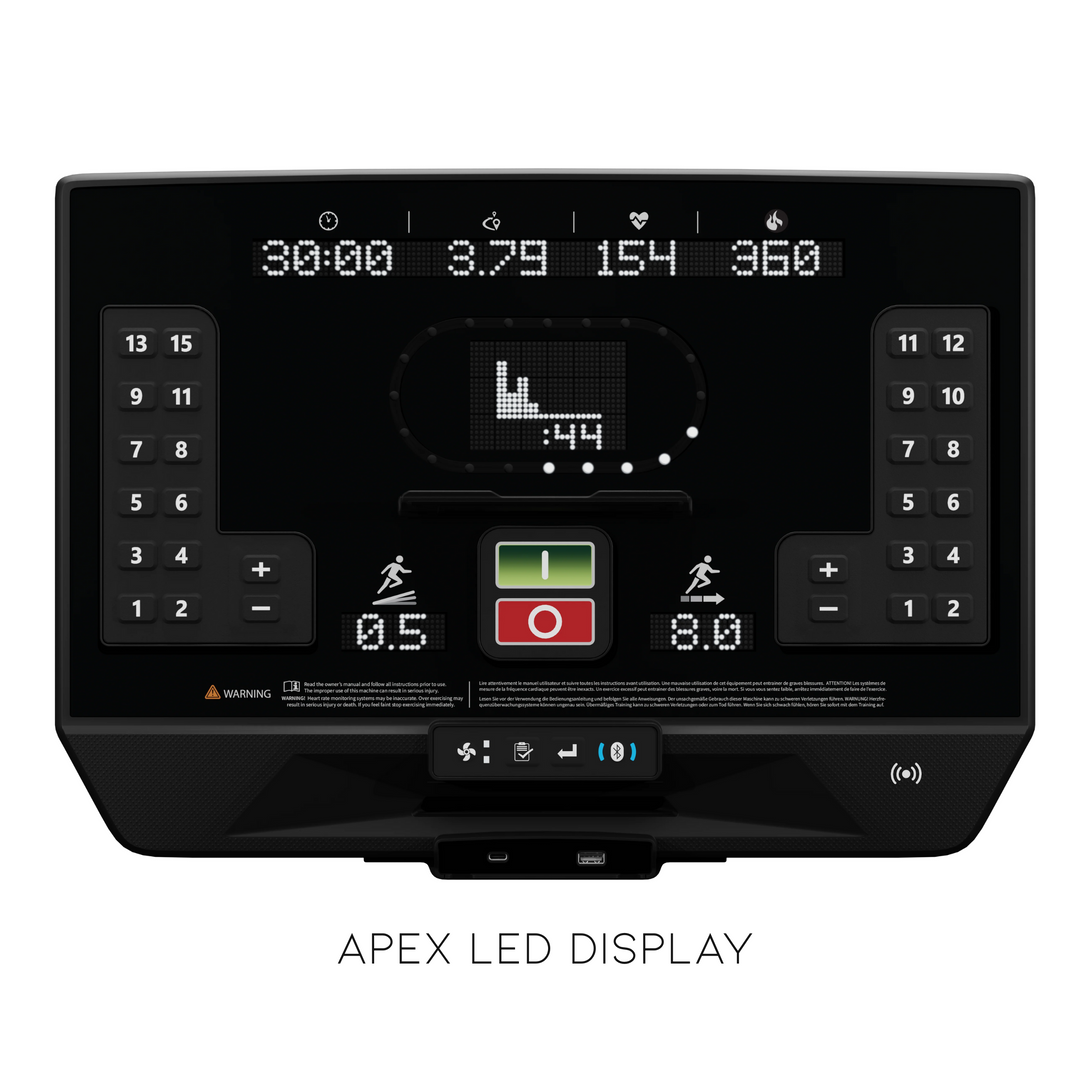

- Dual Display Options: Choose between the Apex LED Display or the immersive 16" HD Touchscreen for tailored workout experiences.
- Landmark Challenge Program: Virtually climb iconic global landmarks to stay motivated and engaged.
- Smartwatch Connectivity: Tap-to-pair with Apple and Samsung watches for real-time performance tracking via NFC.
- Performance-Driven Design: 20 resistance levels, 24–162 steps per minute, and ergonomic handrails for versatile climbing styles.
The StairMaster 8Gx StairMill redefines what a stair climber can be—combining intense cardio, lower-body strength training, and engaging technology into one powerhouse machine. Engineered for both commercial gyms and high-end fitness spaces, the 8Gx delivers ultra-smooth performance with a precision drive system and rugged, sweat-resistant construction. Users can choose between the Apex LED Display or the immersive Apex 16" Touchscreen, both designed to provide interactive, customizable workout experiences.
With ergonomic handrails that support a variety of climbing positions, real-time smartwatch pairing via NFC, and an exciting Landmark Challenge Program that simulates climbs up global landmarks, this stairmill motivates users to push their limits with every step.
From its integrated HIIT programming and entertainment apps to its thoughtfully designed command center—including a wireless charger, USB port, cooling fan, and dual bottle holders—the StairMaster 8Gx ensures users stay connected, comfortable, and hydrated during intense training sessions.
With 20 resistance levels and a step rate of 24–162 SPM, it accommodates all fitness levels, while the compact 9" step-up height makes it accessible for a broad user base. Built to support up to 400 lbs and featuring a sturdy frame at just 58" x 34" x 79", the 8Gx offers maximum performance in a streamlined footprint. It’s not just a stairmill—it’s a full-body training experience that challenges, engages, and delivers results.
| BASE FEATURES | |
|---|---|
| Display | Choose from LED, or 16in (40.5cm) Touchscreen - see next page for display technology |
| Step Surface | 10in (25cm) Deep x 22in (56cm) Width |
| Step Height | 8in (20cm) |
| Step Rate | 20 Levels ranging from 24–162 steps per minute |
| Recommended Ceiling Height | 10ft (3.05m) |
| Step-up Height | 9in (23cm) |
| Controls | Easily accessible integrated speed and elevation controls, stop button and contact heart rate grips |
| Contact & Telemetric HR | Yes |
| Wireless Phone Charging | Yes |
| Max User Weight | 400lb (181kg) |
| Drive System | Generator |
| Power Requirements | 12 V/5 Amp power supply |
| FRAME | |
| Material | Powder Coated Steel Frame |
| Standard Color | Matte Black (-60 black) |
| Customizable | Yes, frame color is customizable. Paint color approval required |
| Assembled Dimensions | 58 x 34 x 79in (147 x 86 x 200cm) |
| Product Weight | 509.4lbs (231.1kg) |
| Shipping Dimensions | 53 x 37.8 x 55.3in (134.7 x 96.1 x 140.5cm) |
| Shipping Weight | 609.4lbs (276.4kg) |
